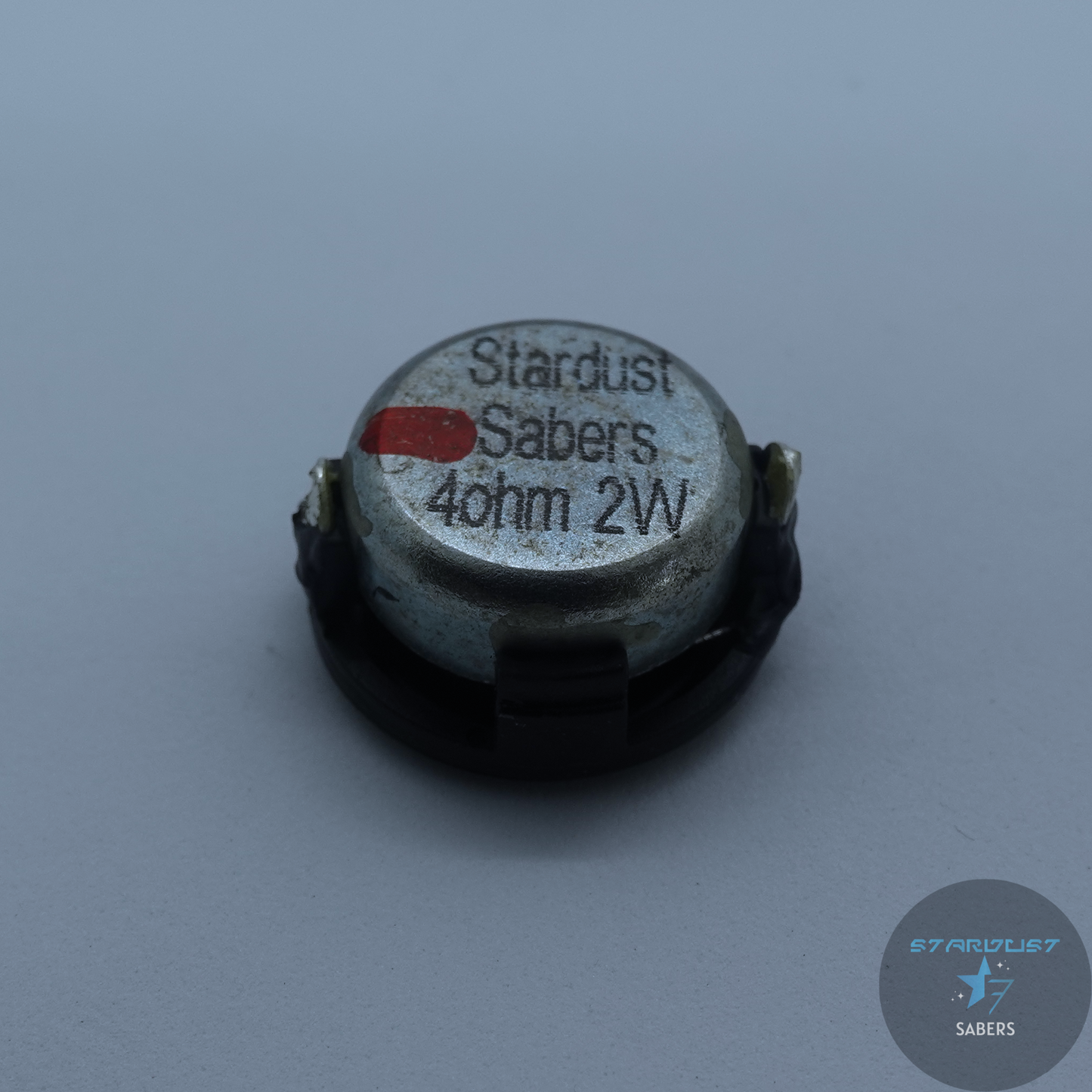

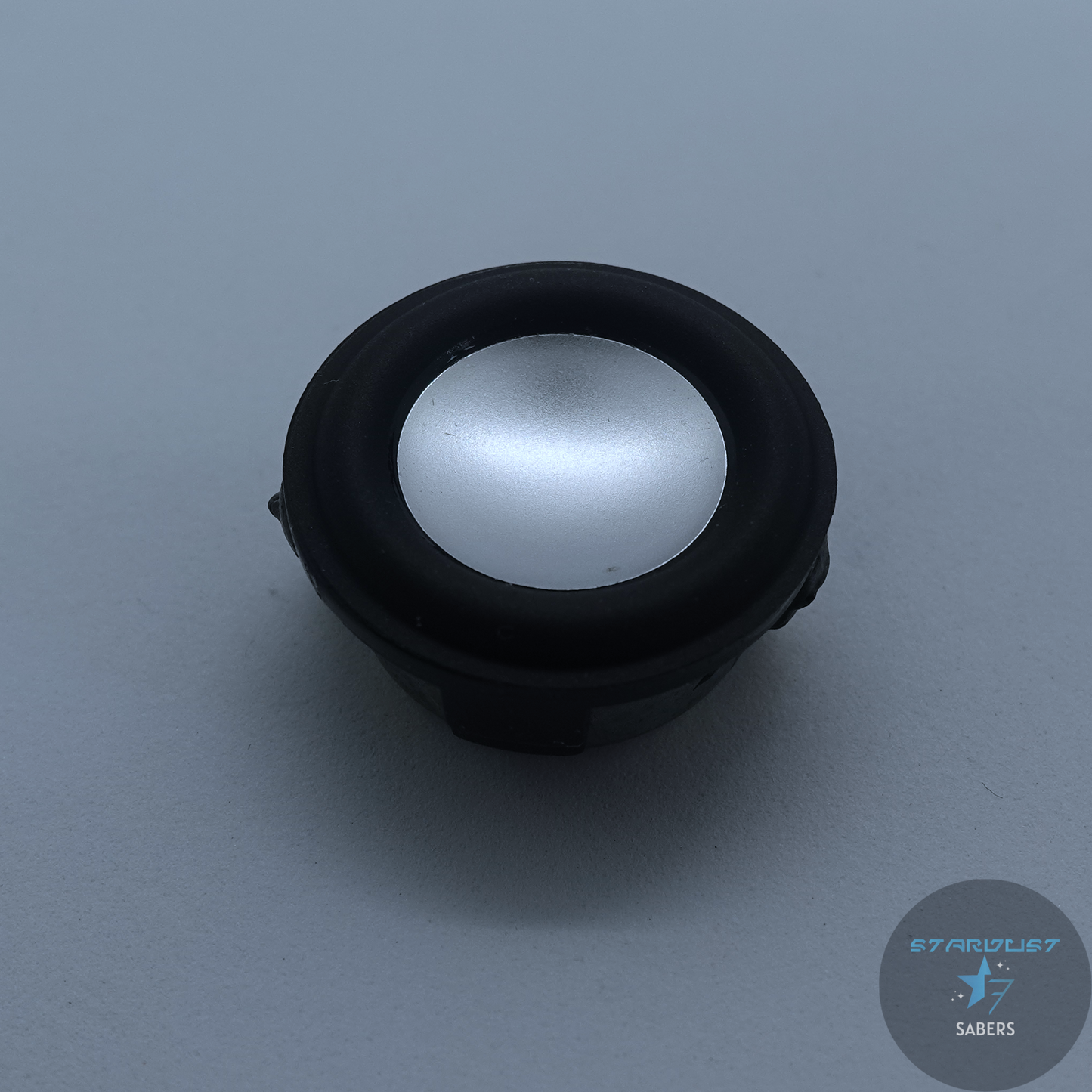

SDS 22mm Bass Speaker (4Ω 2W)

Here we have a 22mm bass speaker rated at 4Ω and 2W output. These are small speakers that still output loud and clear sounds rivaling even 24mm speakers when it's well enclosed. Perfect for builds with an internal hilt diameter of 1" or less.

If you're designing a chassis for this speaker, ensure you leave some room for the speaker cone to move.

Diameters

• Rim Diameter: 22mm
• Magnet Retaining Tab Diameter: 22mm

Heights

• Total Height: 11.5mm
• Magnet Height: 8mm
• Rim Thickness: 2mm
