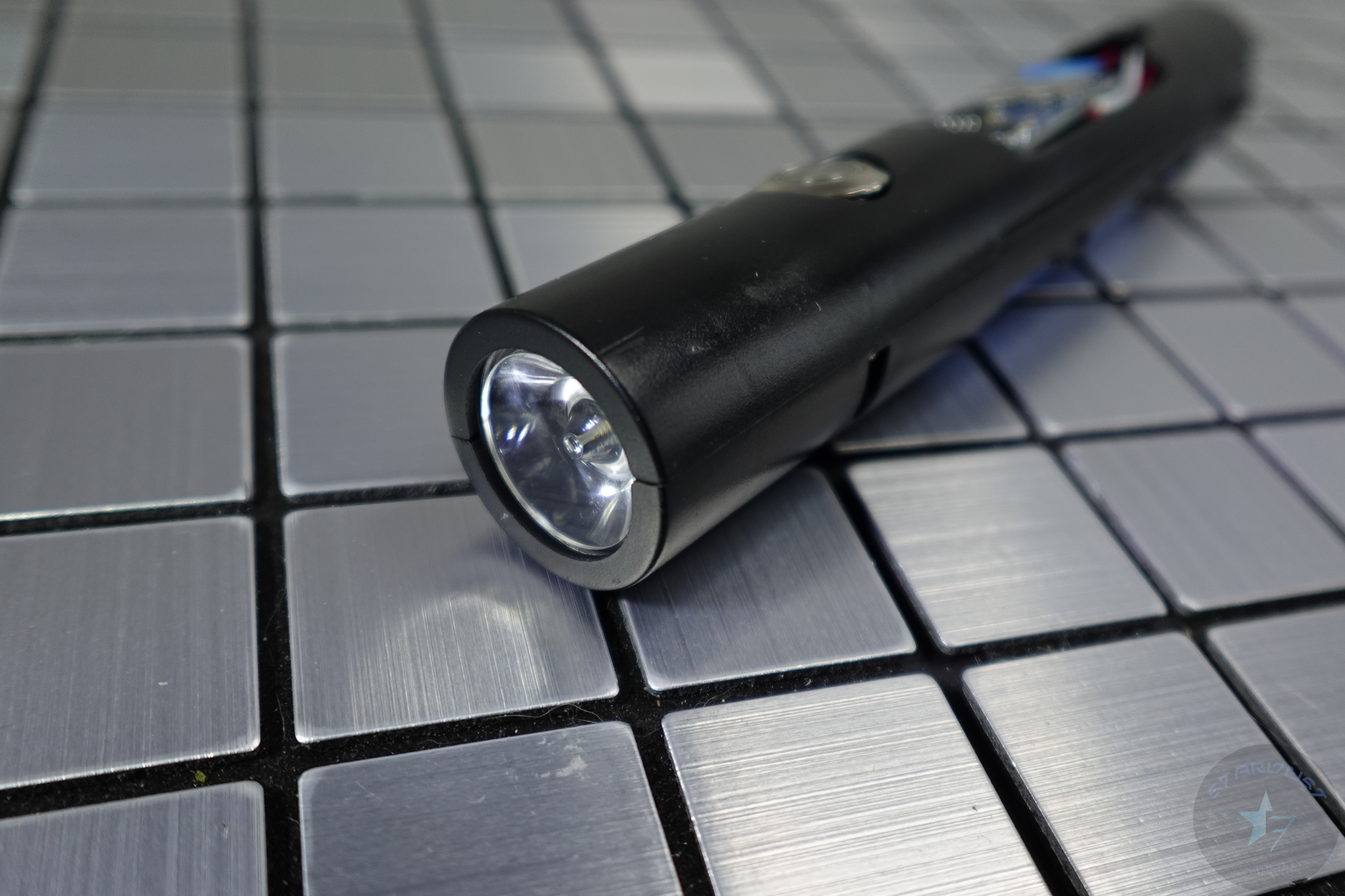

MCH S-RGB V4 Baselit Core (Single Switch)

You can find instructions below at S-RGB Instructions

Before use, charge the saber fully with the provided cable and charging block. Make sure to not supply more than 5V and 1A output to the saber or charge the saber while it's on. If those numbers mean gibberish then don't worry, that's what the charging block is for!

Charge for about 2 hours for but make sure not to leave it completely unattended.

To insert the blade, use the provided hex key to loosen the emitter blade retention screws. Insert the blade and tighten the screws just enough to hold the blade in place with friction.

Be careful not to over-tighten, as this will dent and damage the blade. Light marks on the blade from the set screw is expected.

Features

S-RGB V4 comes with a large library of sound fonts (27) already on the SD card but you can add even more just by dragging and dropping it on the SD card. There are 3 blade styles and you can easily toggle between them or set colours via the mobile app!


Sound Fonts

Here are the 27 default sound fonts included on the SD card. You may add, edit, or delete sound fonts but make sure you keep a backup of the files on your local hard drive.

Sound Font Name	Sound Font Artist
Ani's Padawan	JuanSith
Angry Ani	JuanSith
Blue Lady Master	JuanSith
Master Depa	JuanSith
D-Maul	JayDalorian
Dookula	JuanSith
Dark Sith Red	Mountain Sabers
Emperor	unknown
Fallen Order Cal	JuanSith
Frolic Frog	JuanSith
Graflex IX	JuanSith
Grumpy Ben	JuanSith
Inquisitor	JuanSith
L-Skywalker	JayDalorian
Mace Windy	JuanSith
Mando Saber	JuanSith
Master Mundi	JuanSith
Obi Ep III	JuanSith
Quin Vos	JuanSith
Revanchist - Reborn	JuanSith
Revanchist - The Butcher	JuanSith
Temple Guard	JuanSith
TFU 2 Secret Apprentice	JuanSith
The Lost Sister	JuanSith
Tulak: The Greatest Swordsman	JuanSith
Rogue Vader	JuanSith

Adding Background Music

Some but not all of the default sound fonts have background tracks already.

If you wish to add tracks to a sound font make sure that they are:

• saved as .wav files
• bitrate of 44100 Hz
• saved without any metadata

Tracks are stored in each individual sound font folder with the following naming format track#.wav or track (#).wav. If you have multiple track files, make sure they are named in numeric sequential order. When playing background music the tracks would be selected at random.

Saber Operation (1 Button)

Hibernate
Wake up saber	Hold button



Standby
Ignite saber	Tap button
	Twist the saber
Adjust volume	Hold the button for 1s or 1 LED button blink
Switch sound fonts	Hold the button for 2s or 2 LED button blinks
	With the saber pointed up, hold the button and twist the saber
Switch blade style	Hold the button for 3s or 3 LED button blinks
Background music	With the saber pointed down, hold the button and twist the saber
Enter hibernate mode	Hold the button for 5s or 5 LED button blinks
	Idle for 10 minutes



Ignited
Blaster block	Tap the button
Flash on Clash	Hard clash on the saber
Lockup	Hold the button for 1s or 1 LED button blink. Tap the button again to disengage lockup
Colour change	Hold the button for 2s or 2 LED button blinks
	With the saber pointed down, hold the button and twist the saber
Enable or Disable Flash on Clash	Hold the button for 3s or 3 LED button blinks
Switch blade style	With the saber pointed up, hold the button and twist the saber
Retract saber	Hold the button for 4s or 4 LED button blinks
	Twist the saber

Saber Operation (2 Buttons)

Hibernate
Wake up saber	Hold the Main button



Standby
Ignite saber	Tap button
	Twist the saber
Adjust volume	Hold the Main and Aux button at the same time, release after the prompt to enter volume change mode. Click main button to increase the volume and click Aux button to decrease the volume. Press and hold Main and Aux button to exit
Switch blade style	Hold the Aux button for 1s
Switch sound fonts	Tap the Aux button or With the saber pointed up, hold the Aux button and twist the saber
Switch background music	With the saber pointed down, hold the Aux button and twist the saber
Enter hibernate mode	Tap the Aux button 3 times or Automatically enters hibernate mode after idling for 10 minutes



Ignited
Blaster block	Tap the Aux button
Flash on Clash	Hard clash on the saber
Lockup	Hold the Aux button for 1s. Tap the Aux button again to disengage lockup
Colour change	With the saber pointed down, hold the button and twist the saber
Retract saber	Tap the Main button
	Twist the saber
Enable or Disable Flash on Clash	Hold the Main and Aux button at the same time then release

Saber Customization

SD Card Customization

You can add sound fonts on the SD card with numerically ordered folder names. S-RGB V4 can take Proffie formatted sound fonts.

You can also change blade styles in the "config.ini" file in the "set" directory.

Mobile App

In addition to the SD card, you can more easily customize the saber via Bluetooth using a mobile app. The app "ForcePark" is available on Android through the Google Play Store and iOS on the App Store.

It currently has the below icon:

Note: The iOS version of the app is currently experiencing connectivity issues. The engineering team from TXQ is looking into resolving this in a future firmware update.



More Information

Battery Removal and Insertion

Some sabers may use an external battery charger which require removing the battery to recharge it. You may also want to remove the battery to reseat it in your ECO Saber or charge it externally. Below is a demo showing how to remove the battery from the tight battery holder and re-inserting it back in the core.

Saber with multiple blade retention screws

What if my saber has multiple blade retention screws? Should I tighten them all in?

Good question, here are some diagrams to illustrate which ones you should tighten. The blade retention screws are marked in blue and the contact points acting on the blade are marked in red.


In the middle diagram with all retention screws tightened, the red areas marked in red are the surface area contact points of the blade. Note how it's only really making contact with the 4 retention screws and the opposite ones are counteracting against each other.

Whereas in the 3rd diagram on the right, where only retention screws on the same side are tightened, the blade has much more surface area contact with the inside wall of the hilt itself.

It's preferred to tighten retention screws on the same side, or 90 degrees from each other so the blade has more surface contact which results in it being held in the saber tighter.
