One Replicas SSQy Chassis

One Replicas SSQy Chassis

$32.50 CAD
$32.50 CAD $32.50 CAD
Sale Sold out
Shipping calculated at checkout.
Soundboard
View full details

Description

Here we have a removable chassis for the OneReplicas Super Stunt Qui-Gon (SSQy).

This chassis is only compatible with Neopixel builds. Please specify the brand of Neopixel connector you will be using for this build.

The switch + Neopixel housing is intended to be held in place with the Neopixel adapter/LED module retention screw.

Note: This chassis design makes use of our 6 Rail Chassis Connector set. Please refer to the wiring diagram on how to wire it up.
The female (flat) PCB goes in the main chassis and the male (pin) PCB goes in the switch housing.

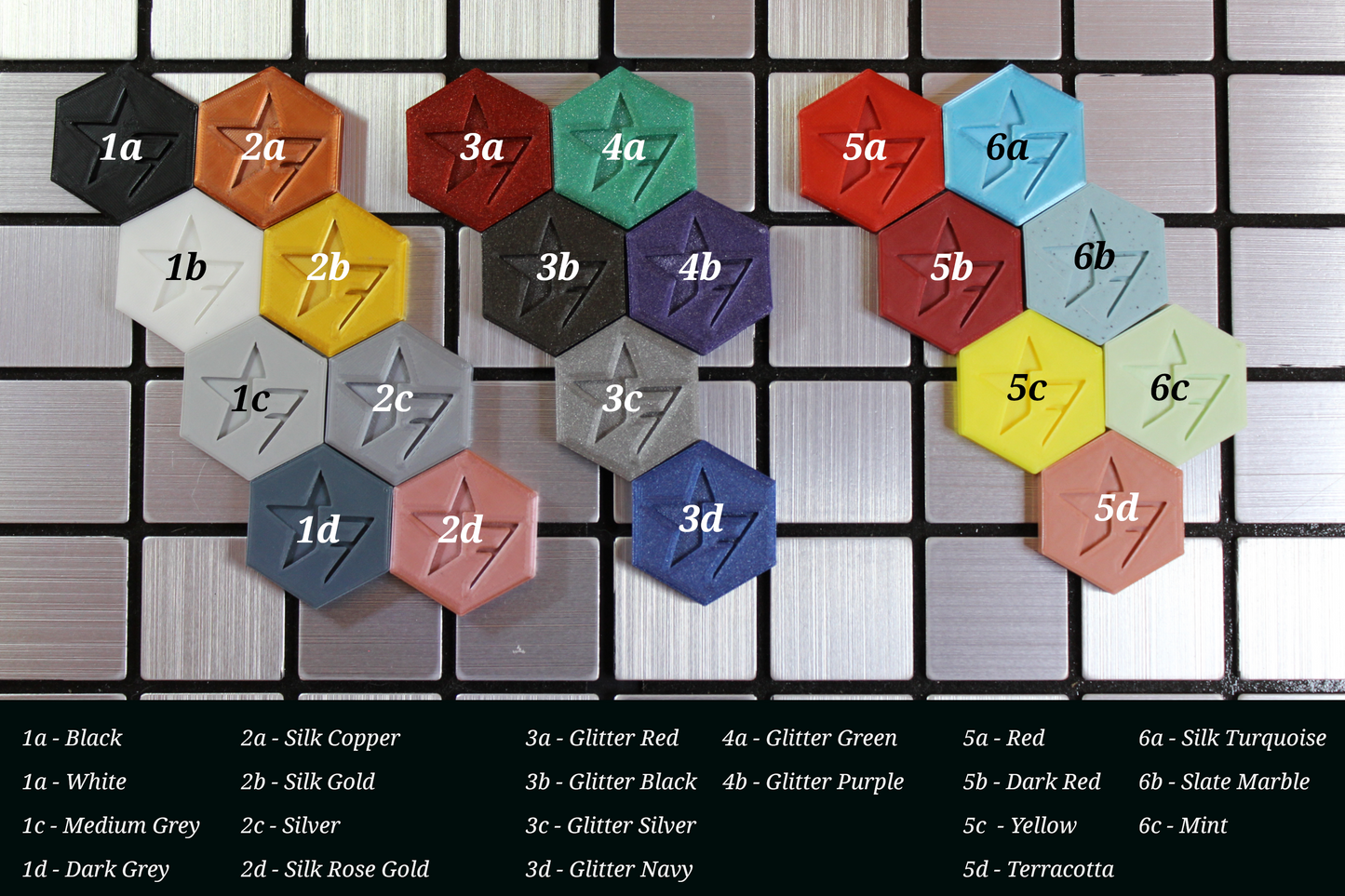

These are printed in high quality PLA with a variety of colour options.

Specs:

  • Soundboard: Proffieboard v2.2, Golden Harvest V3, Verso, or Crystal Focus X
  • Chassis Connection: Stardust Sabers 6 Rail Chassis Connector PCB
  • Battery: Removable Protected Button Top 18650 Battery (Battery contacts will be provided)
  • Speaker: 24mm Bass Speaker here
  • Power Management (Optional): High Amp Kill Switch here

Listing includes:

  • 1x printed SSQy chassis
  • 1x printed switch + Neopixel housing
  • 1x pair of battery contacts
  • 1x speaker spacer
  • 1x 6mm x 6mm x 4.5 tactile switch
Other electronics not included

If at any point in the install the chassis is making it difficult for your install instead of enabling, please reach out to us immediately. We'll be more than happy to work through the issue with you.

Dimensions

Lengths

  • Main Chassis: 142mm
  • Neopixel Connector + Switch Housing: 83mm
  • Speaker Spacer: 16mm

Diameters

  • Main Chassis: 24.7mm
  • Neopixel Connector + Switch Housing: 25.4mm
  • Speaker Spacer: 24.8mm

Returns and Exchanges

As 3D printed chassis are custom made to order we will unfortunately not be able to offer a refund or exchange on these items.

But if you encounter issues with the chassis which you are dissatisfied with, please reach out to us immediately and we'll be more than happy to work with you to try to get it resolved.
