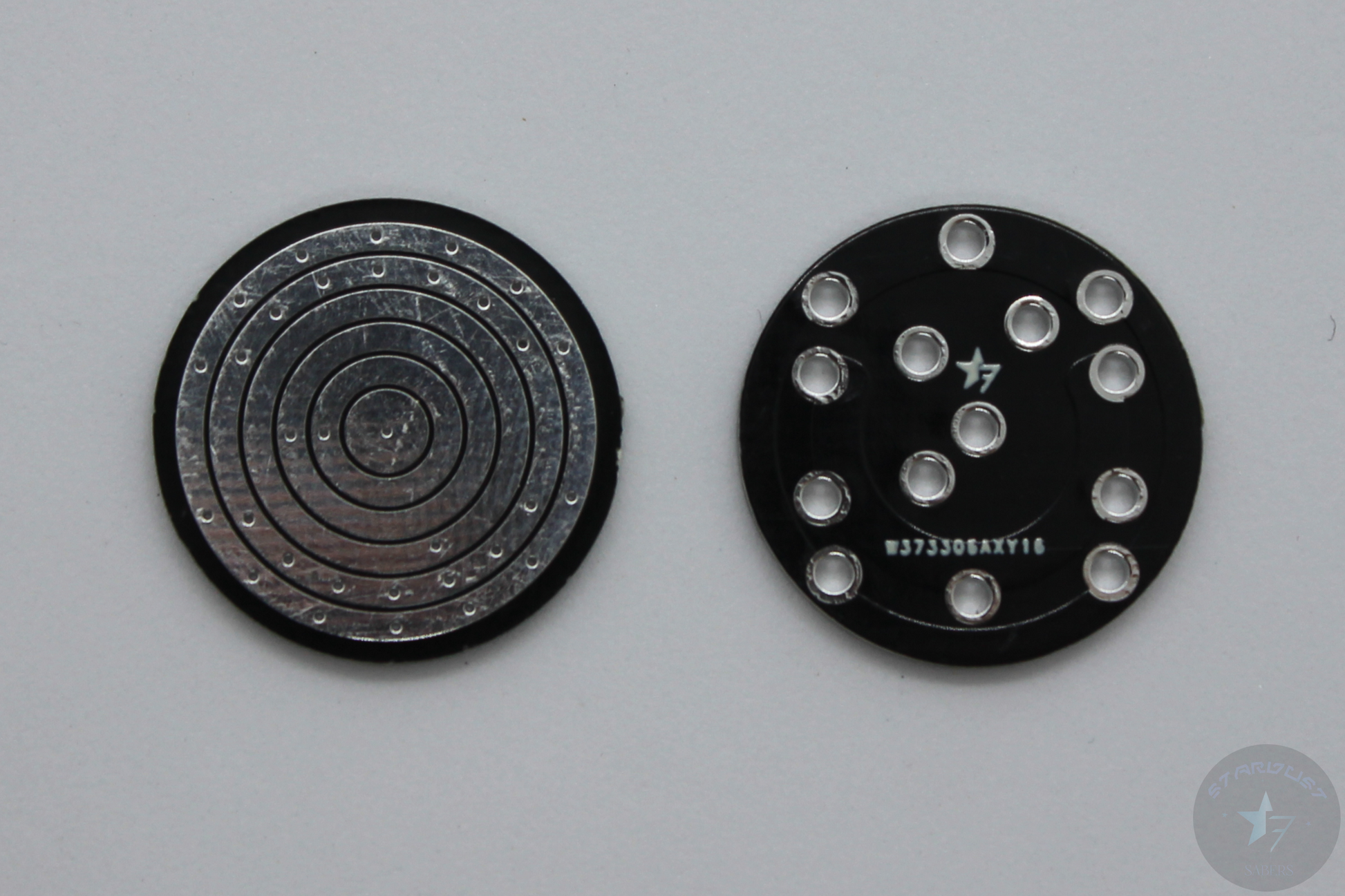

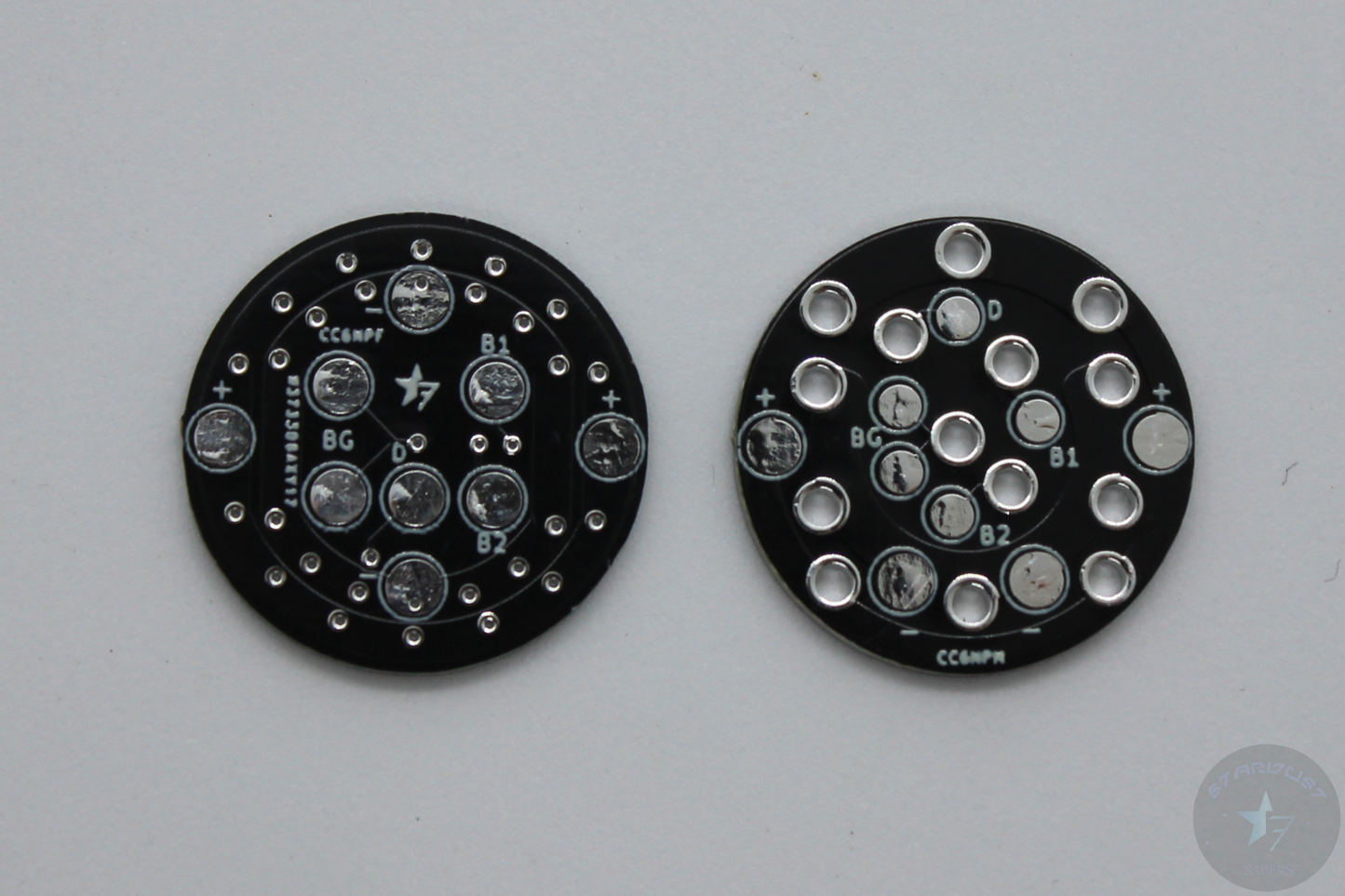

6 Rail Chassis Connector

This is a chassis PCB connector set that can be used to make a removable chassis module. No more dangling wires in your builds and hard wired chassis in your hilt. A more elegant chassis solution for a more civilized age!

Designed for Neopixel builds with a single data line and 2 buttons in mind. Each pin is rated at 5.20A 20% de-rated maximum current and 6.5A peak current.

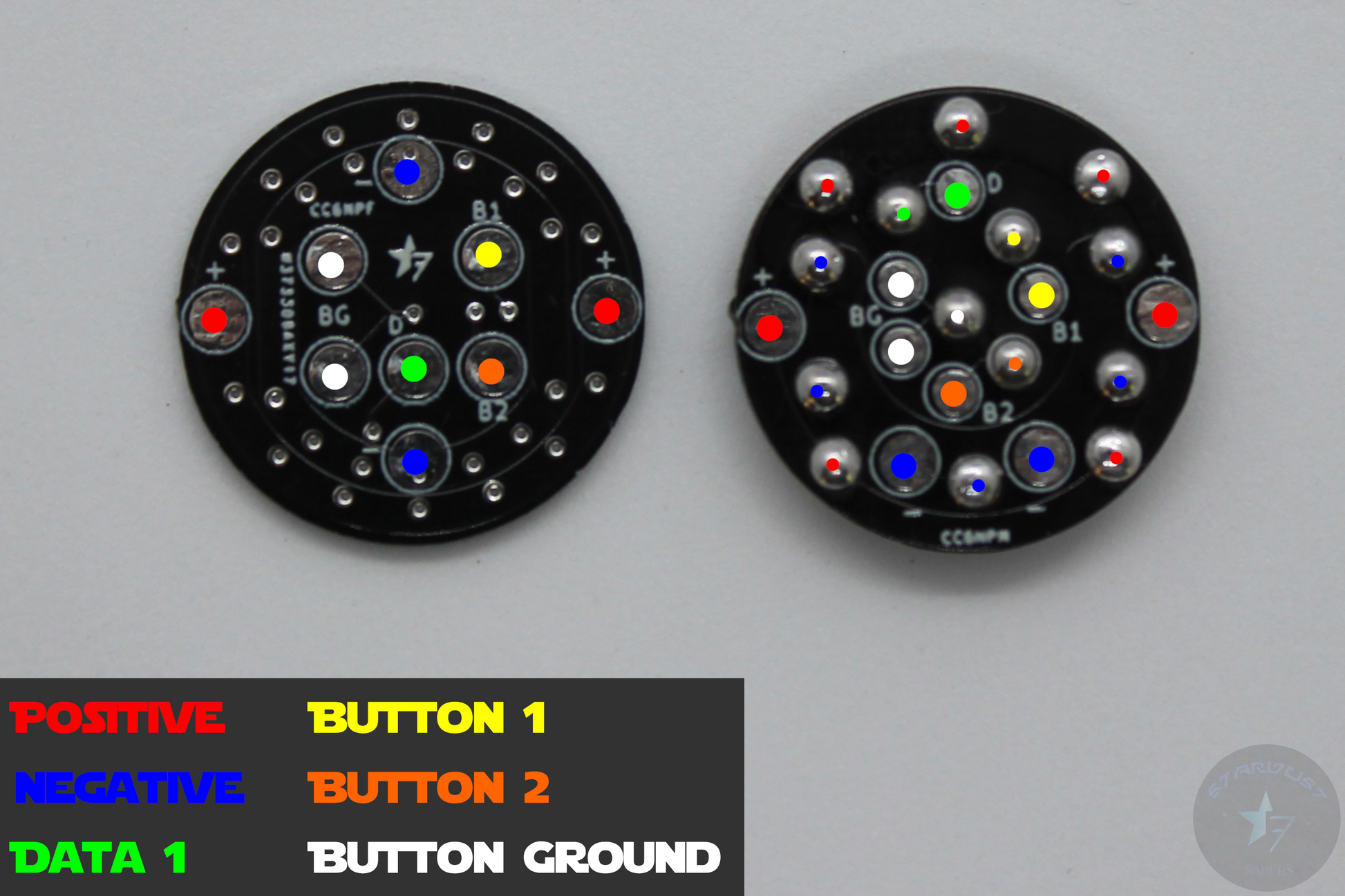

Please refer to the diagram for wiring up each PCB.
Aside from the positive and negative rails, the other 4 pins can be utilized as you see fit to suit your build.

Due to the fabrication process, PCBs may have edge breaks which may need to be filed down. Be careful not to file too much that the copper traces are exposed.

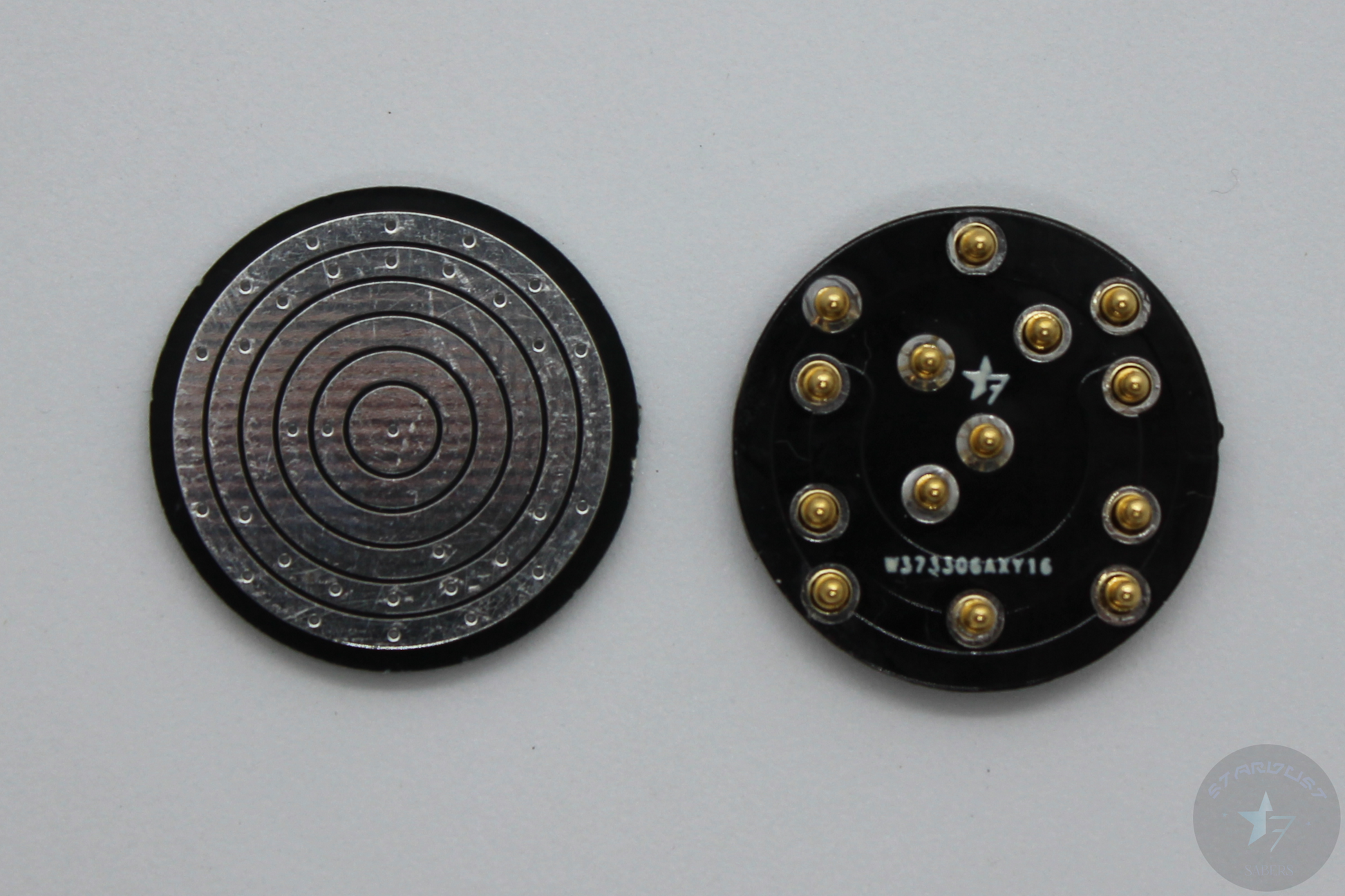

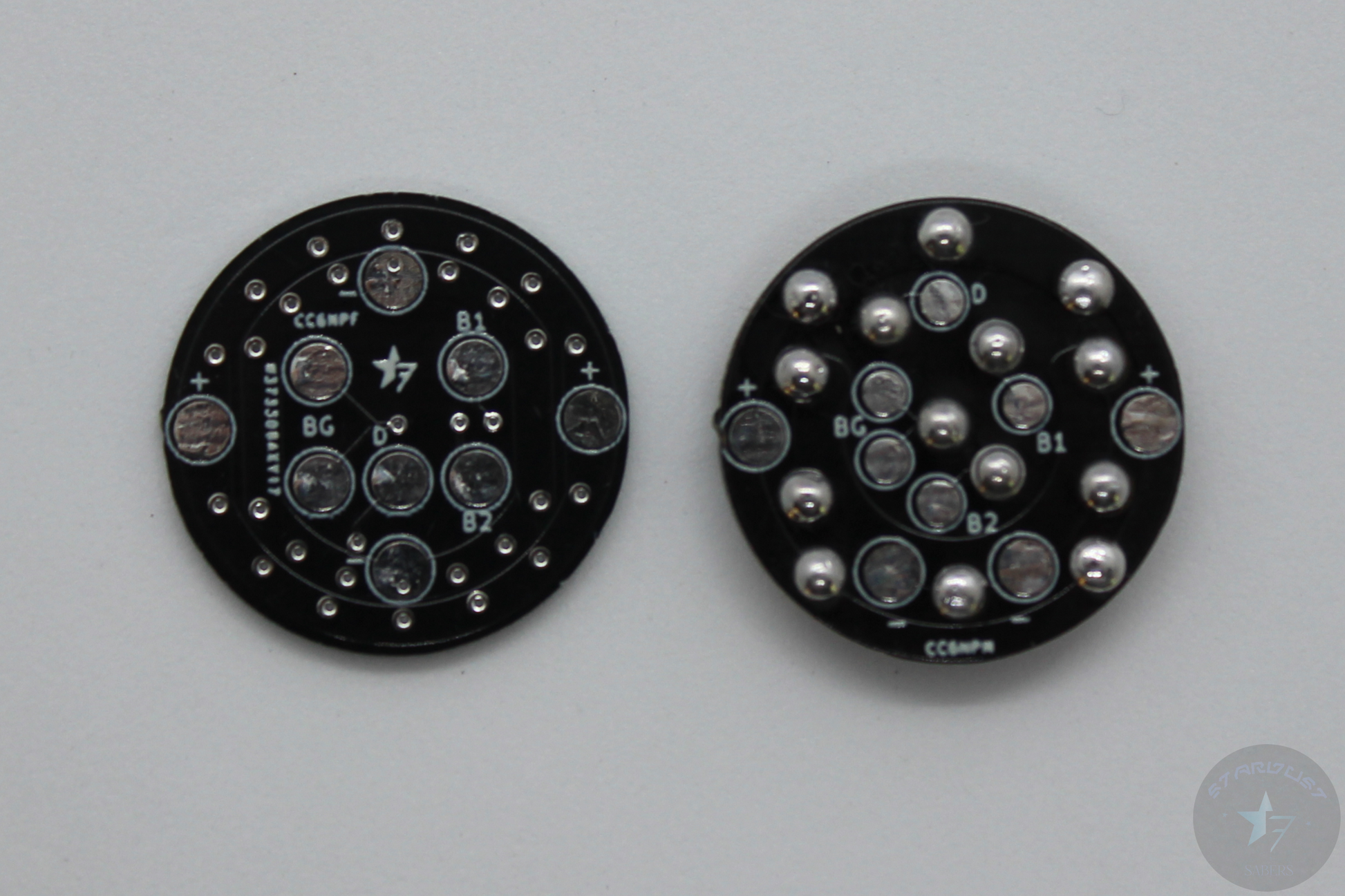

For the pre-soldered option I'll be soldering each of the pins on the male PCB. Wire leads will not be included and pads will not be pre-tinned.
