Saberforge Progeny Removable Chassis

Saberforge Progeny Removable Chassis

$32.50 CAD
$32.50 CAD $32.50 CAD
Sale Sold out
Shipping calculated at checkout.
Soundboard
View full details

Description

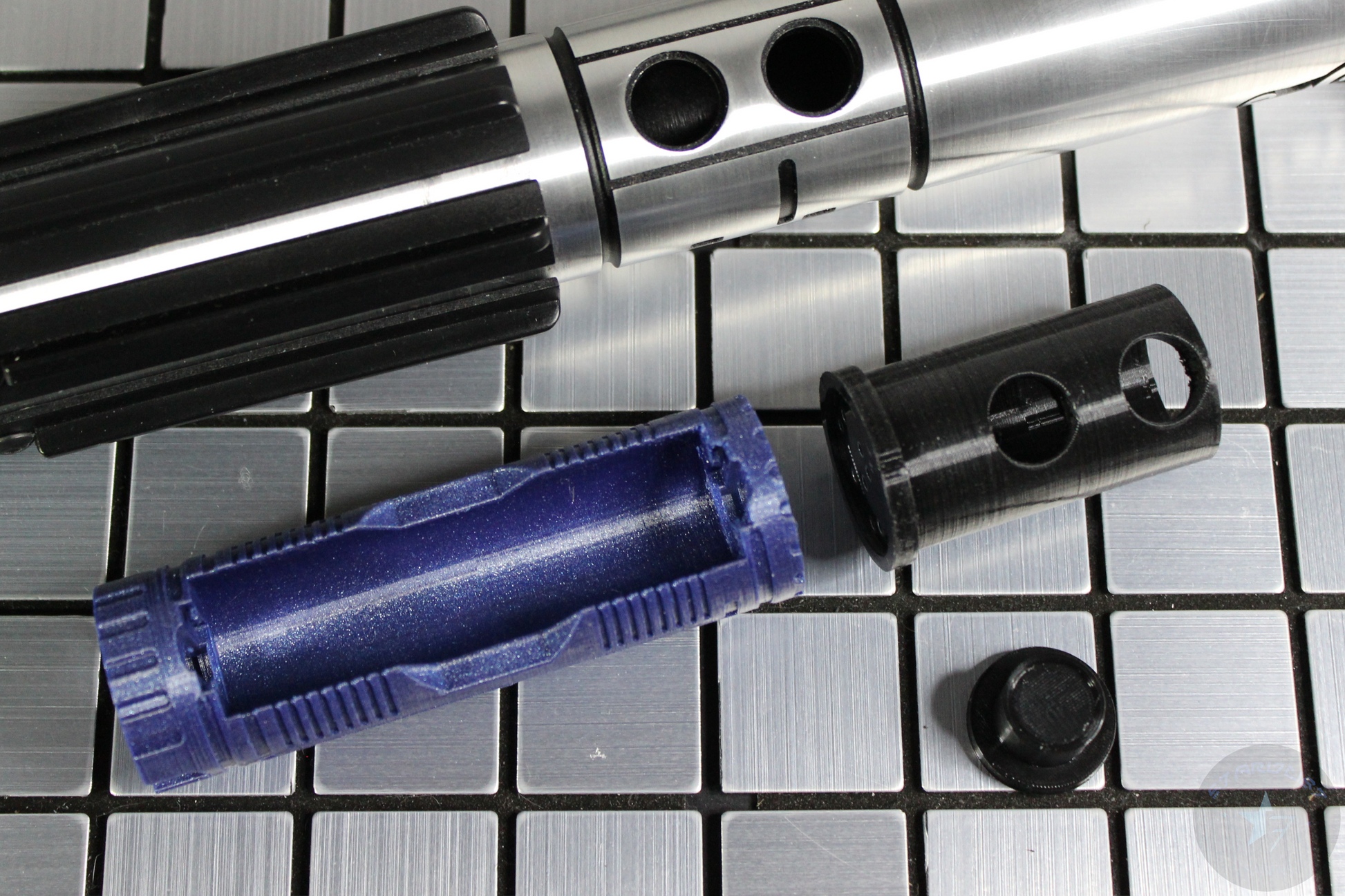

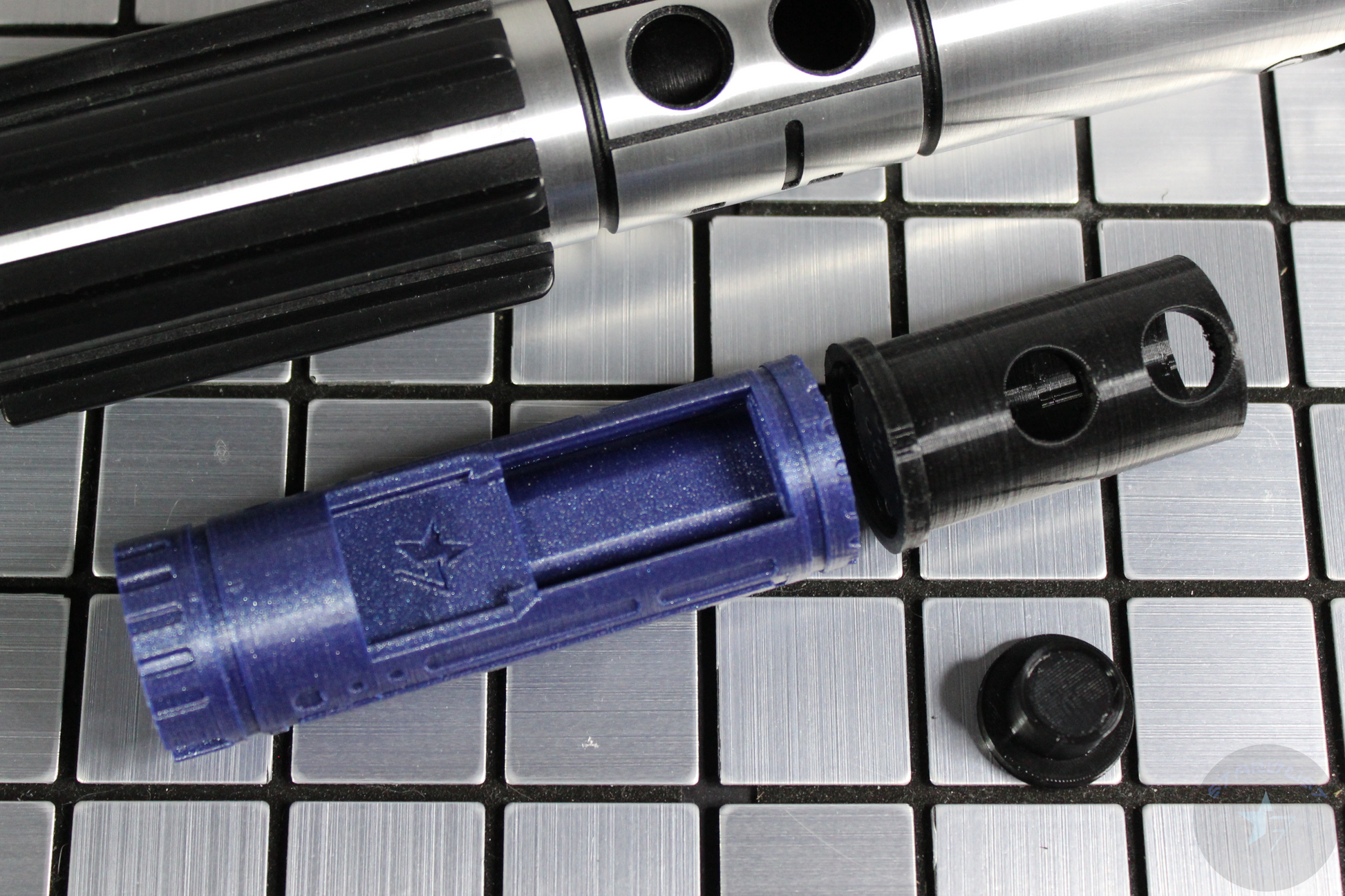

Here we have a removable chassis for Saberforge's Graflex inspired Progeny Apprentice hilt.

This chassis is intended to be compatible with Neopixel builds. Please message us if you want to build this out as a baselit install.

The switch housing is intended to be held in place with the two 12mm Anti-Vandal switches. The switches are an extremely tight press fit. A printed switch pusher tool is included to push the switches into the housing.

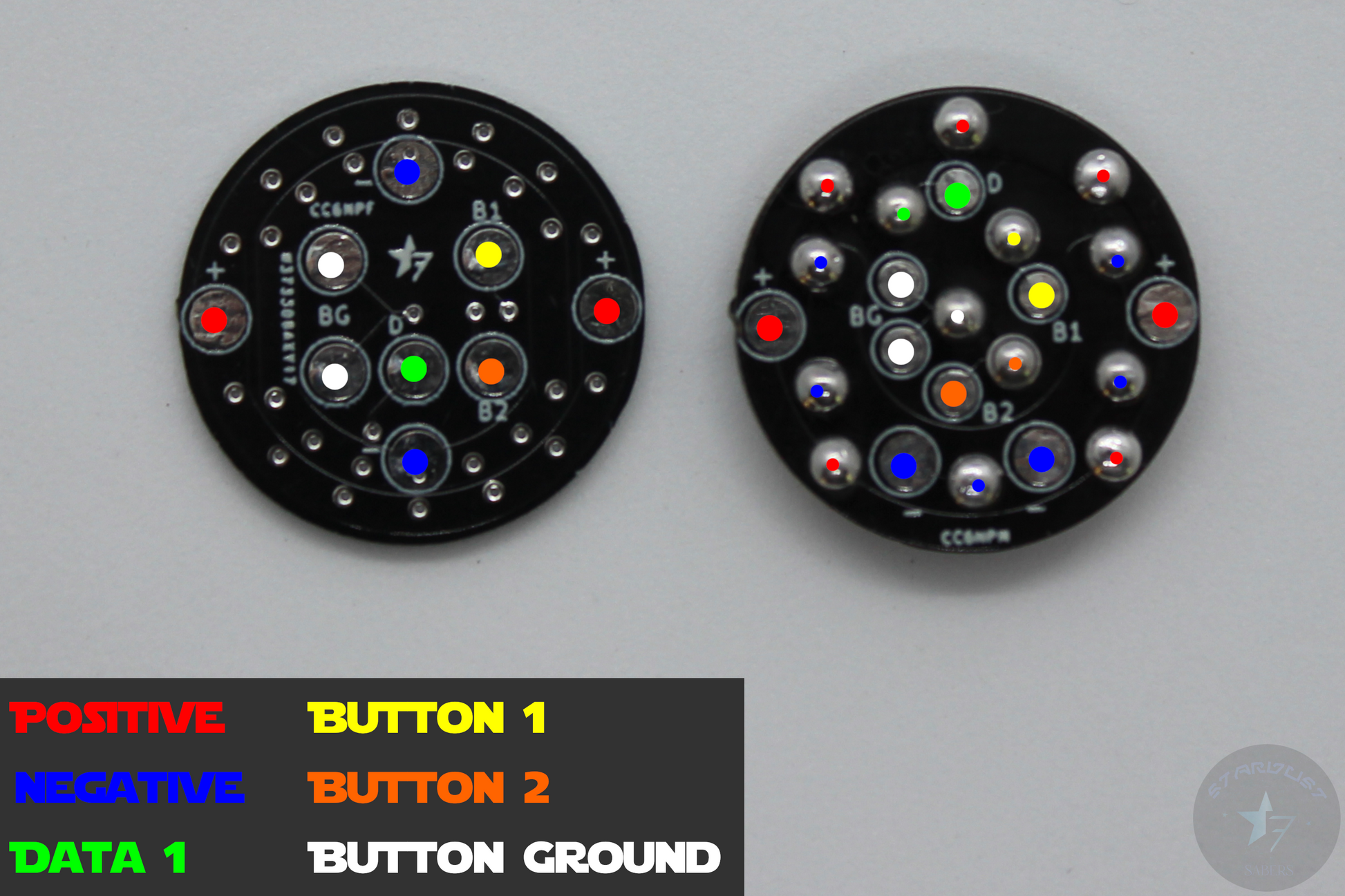

Note: This chassis design makes use of our 6 Rail Chassis Connector set. Please refer to the wiring diagram on how to wire it up.
The female (flat) PCB goes in the main chassis and the male (pin) PCB goes in the switch housing.

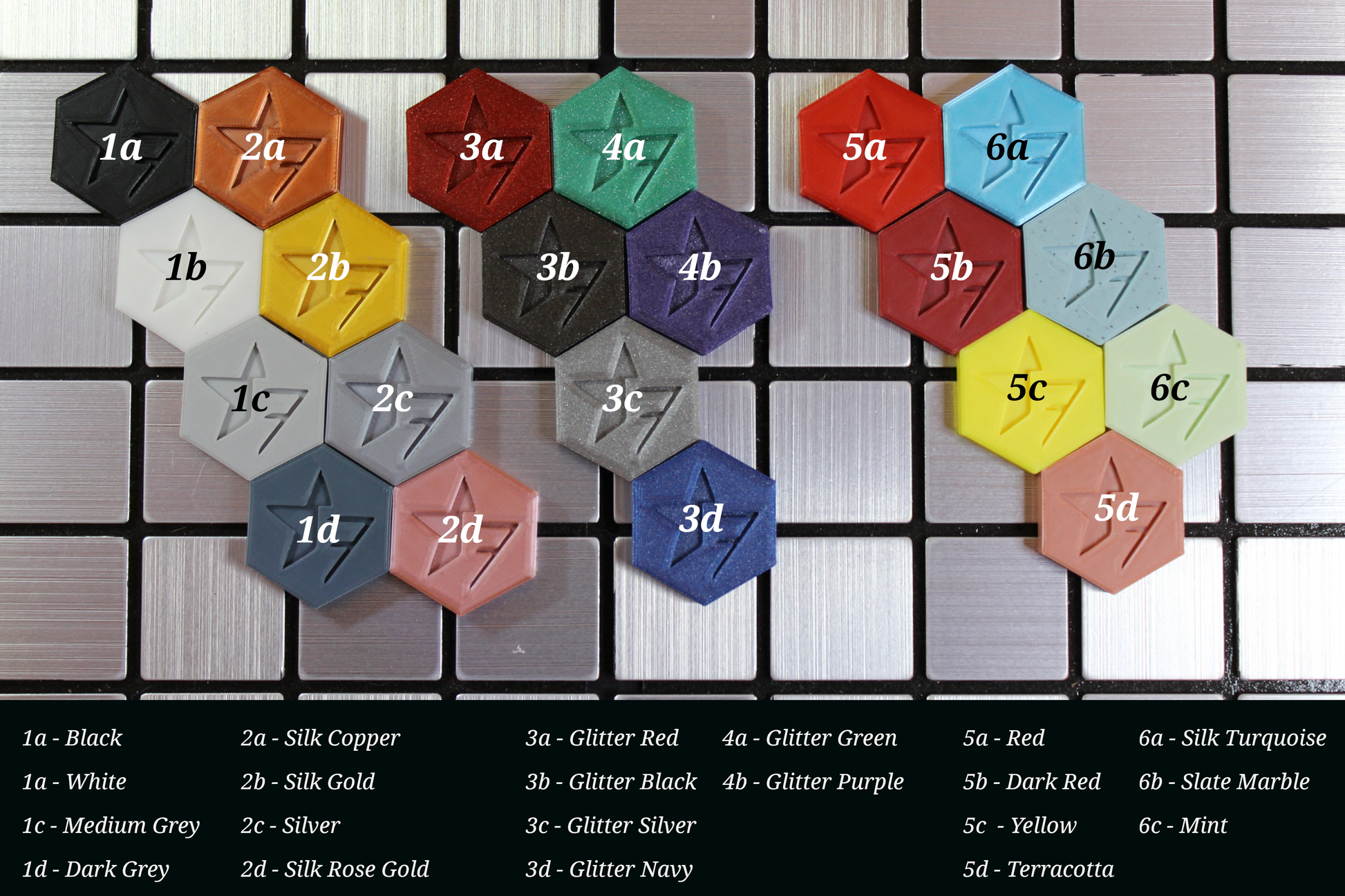

These are printed in high quality PLA with a variety of colour options.

Specs:

  • Soundboard: Proffieboard v2.2, Golden Harvest V3, Verso, or Crystal Focus X
  • Chassis Connection: Stardust Sabers 6 Rail Chassis Connector PCB
  • Battery: Removable Protected Button Top 18650 Battery (Battery contacts will be provided)
  • Speaker: 28mm Bass Speaker here
  • Power Management (Optional): High Amp Kill Switch here

Listing includes:

  • 1x printed SF Progeny chassis
  • 1x printed switch housing
  • 1x printed switch pusher
  • 1x pair of battery contacts
Other electronics not included

If at any point in the install the chassis is making it difficult for your install instead of enabling, please reach out to us immediately. We'll be more than happy to work through the issue with you.

Dimensions

Chassis Length: 90mm

Chassis Diameter: 28.4mm

Returns and Exchanges

As 3D printed chassis are custom made to order we will unfortunately not be able to offer a refund or exchange on these items.

But if you encounter issues with the chassis which you are dissatisfied with, please reach out to us immediately and we'll be more than happy to work with you to try to get it resolved.
